Digital Twins How can digital twins be integrated into the operational routine of an energy system to ensure a resource-efficient and resilient energy supply in the future?
The transformation of the energy system is crucial to meet the challenges of the 21st century. A sustainable and efficient energy system is key to addressing environmental issues, resource scarcity, and the transition to renewable energy sources. However, transitioning to decentralized energy generation with an intelligent and interconnected energy infrastructure also presents many challenges.
Digital twins play a central role in the transformation phase and beyond. They enable precise modelling, monitoring, and control of the energy system. Technologically and in terms of the plurality and diversity of applications, they go beyond conventional approaches, offering a deeper understanding and better control over energy facilities and systems.
What are Digital Twins?
Digital twins are more than just models; they are "living" representations of physical assets in a virtual environment. By continuously capturing real-time data, digital twins enable a precise depiction of the current state of an asset or complex system. This opens up the possibility to analyse the behaviour of the asset or system, allowing for quick responses to changes.

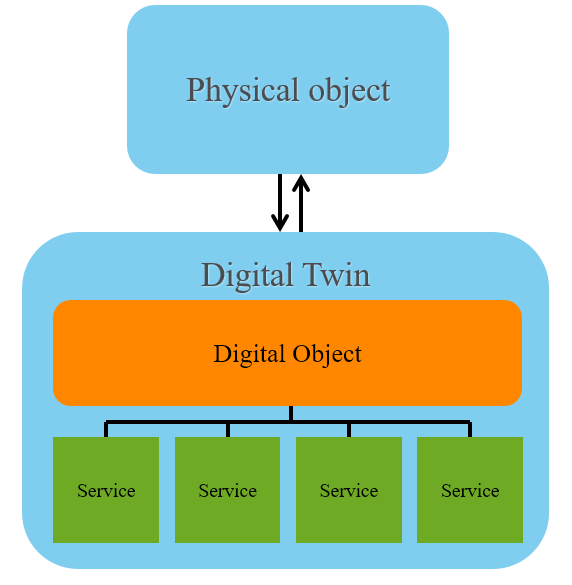

To accomplish this, a digital twin possesses a digital object. The digital object serves as the digital representation of the physical object or system. It is a virtual entity created through comprehensive data and models, mimicking the real object in a digital environment.
It encompasses a wealth of information reflecting the state, characteristics, and behaviour of the physical object. This includes geometric data, physical parameters, operational data, sensor data, and other context-specific information. These data are continuously updated to reflect the current state of the physical object as accurately as possible. By integrating machine learning, artificial intelligence, and analytical algorithms, digital objects can comprehend complex relationships, make predictions, and respond to changes. This enables precise monitoring, control, and optimization of physical objects in real-time.

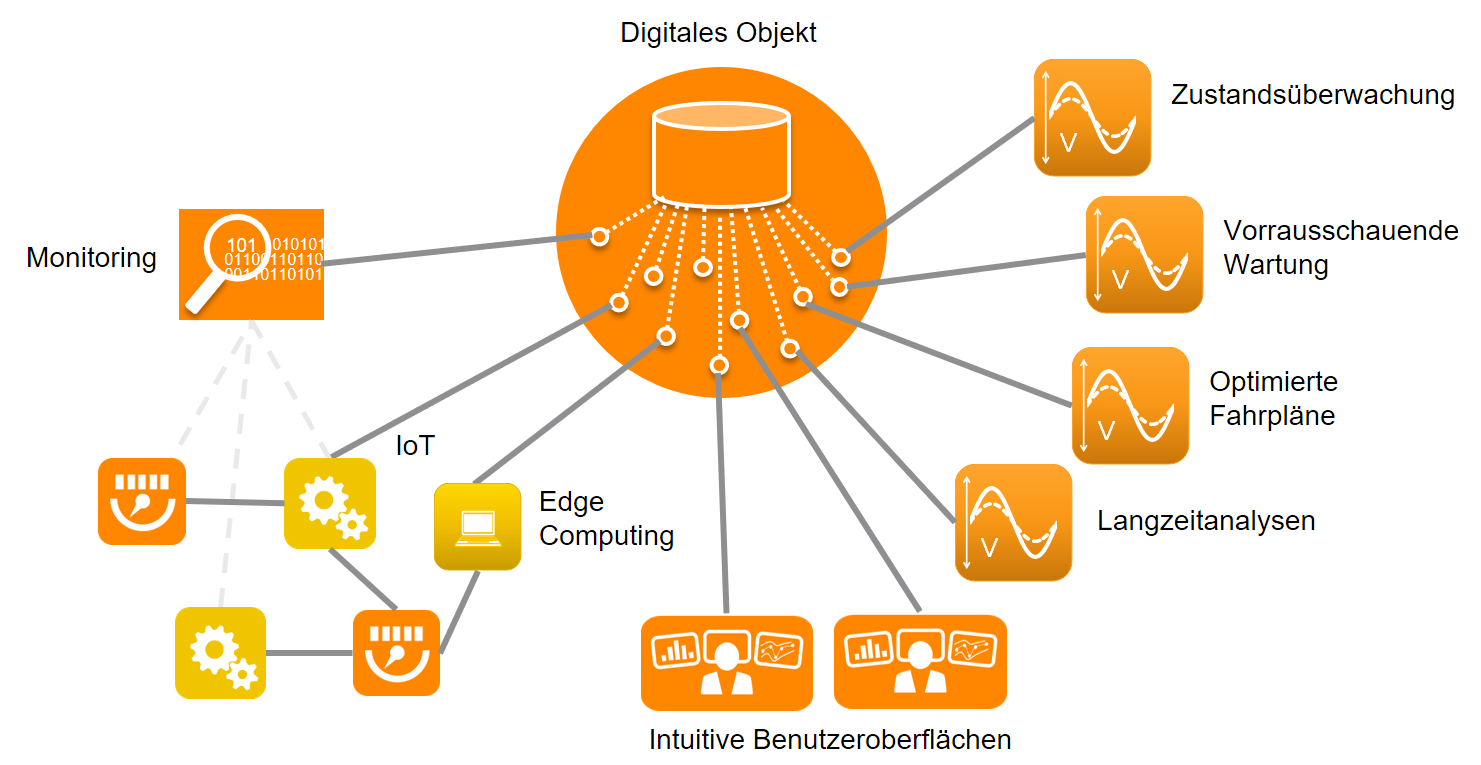

The digital object thus serves as the centrepiece of the digital twin and forms the basis for a variety of applications, which can be connected to the digital object in the form of services to utilize the information. These services are designed to perform specific tasks, functions, services, or interactions with the digital twin or the real object. The use case and purpose of the digital twin defines, which data must be available in the digital object and which services are to be used.
Definition
OFFIS defines digital twins independently of specific domains as follows:
A digital twin is the highest form of integration of the digital twin concept. In this context, the digital object reflects the physical object in such detail that the purpose of the digital twin is fulfilled. The connection between the objects is bidirectional and in real-time. The digital object is updated by data from observers and reflects decisions back to the physical object, influencing it using manipulators.
Noteworthy characteristics include:
- Purposefulness: The goal of every digital twin is to fulfil a predefined purpose. The functional scope of the digital twin is sufficient once the purpose is achieved. While a higher level of detail is possible, it is not necessary.
- Real-time: The digital twin's functionalities are bound to real-time, i.e., within a specified time frame, requirements. The size of this time frame depends on the digital twin's purpose.
- Observers and manipulators: The digital object receives data from the physical object through observers and, in turn, influences the physical object using manipulators. These may include sensors and actuators that automatically transmit data and perform tasks. However, the broader concepts of observers and manipulators also allow for broader possibilities for data acquisition and task execution. For example, external systems not associated with the physical object and humans (human-in-the-loop) can contribute to data acquisition as long as the real-time requirements are satisfied.

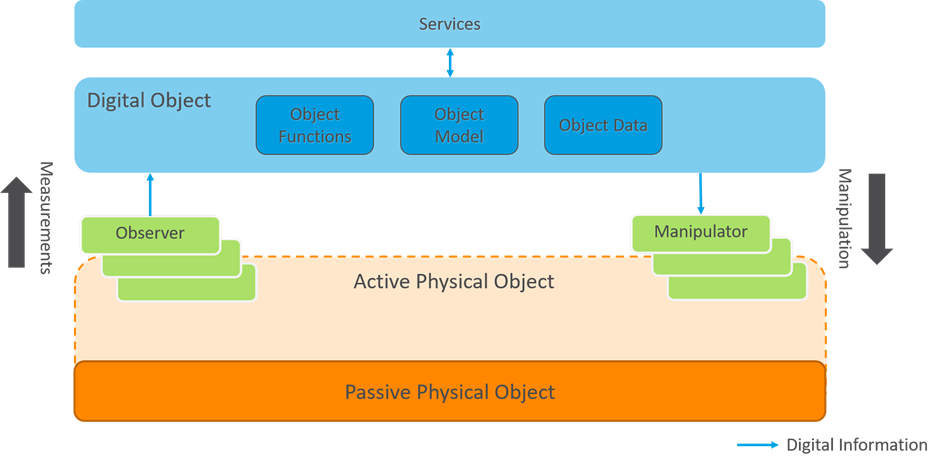

A significant advantage of this definition is the representation of passive physical objects (objects with inadequate sensors) through a digital twin. A schematic representation of a digital twin derived from the definition is shown in the following Figure.
Overview of Use Cases
The use case defines how a digital twin is deployed in a specific situation, what functions it performs, and what benefits it brings. Digital twins can be used, for example, for:
- Optimized plant performance: Digital twins enable precise plant modelling for optimal performance.
- Prediction and planning: Precise predictions and simulations allow for the analysis of future scenarios and the development of strategies.
- Effective maintenance: Real-time monitoring enables early problem identification and preventive maintenance.
- Resilient control and monitoring of complex systems: Real-time integration with telecontrol technology and a digital twin combined with automation and virtualization, allows for improved anticipation and enhanced flexibility utilization, making complex systems, such as energy supply systems, more resilient to operate. Learn more...
Innovation Goals
The ROC group is advancing the development of a reference architecture for digital twins for research and development, aiming to facilitate the creation of customized digital models, shadows, and twins. The reference architecture particularly focuses on the following properties:
- Event-driven processing
- Modularity and flexibility
- Scalability
- Open-source availability
- CGMES support (for energy-related use cases)
- Definition and information exchange via administration shells
- Hierarchical/nested digital twins
